Rails


class: middle, center

# Rails

![Rails](img/rails.png)

[http://pjb3.me/bewd-rails](http://pjb3.me/bewd-rails)

.footnote[
  created with [remark](http://github.com/gnab/remark)
]

---

# Create A New Project

Create a new Rails app using the Postgresql database

    .terminal
    $ rails new betastore -d postgresql
          create
          create  README.rdoc
          create  Rakefile
          create  config.ru
          create  .gitignore
          create  Gemfile
          create  app
          create  app/assets/javascripts/application.js
          create  app/assets/stylesheets/application.css
          create  app/controllers/application_controller.rb
          create  app/helpers/application_helper.rb
          create  app/views/layouts/application.html.erb
          create  app/assets/images/.keep
          create  app/mailers/.keep
          create  app/models/.keep
          create  app/controllers/concerns/.keep
          create  app/models/concerns/.keep
          ...

---

# Project Structure

    .terminal
    betastore
    ├── app - Application code
    ├── config - Configuration code
    ├── db - Database modifications
    ├── lib - Generic code
    ├── log - Log files
    ├── public - HTML/CSS/JavaScript/Images
    ├── test - Test code
    └── vendor - 3rd party code

---

# Model-View-Controller (MVC)

The MVC pattern keeps persistence and presentation code separate

    .terminal
    ├── app
    │   ├── controllers
    │   ├── models
    │   └── views
    └── config
        └── routes.rb

## Router

Controls which controller action handles the request

## Controller

Coordinates between models and views

## Model (persistence)

Used by the controller to store/retrieve data from the database

## View (presentation)

Templates used to generate HTML

---

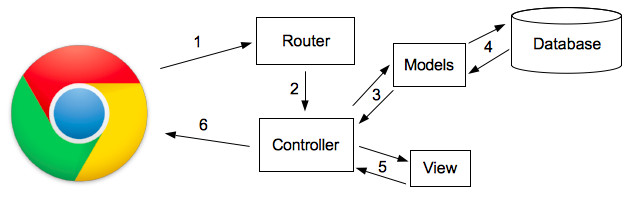

# How Requests Are Handled in Rails Apps

![MVC](img/request_diagram.png)

1.  Browser makes an HTTP request

2.  Router determines which controller action should handle the request

3.  Controller action uses models to store/retrieve data

4.  Models make SQL queries to store/retrieve data from the database

5.  Controller passes data to the view templates to generate an HTML page

6.  Controller returns the HTML page to the browser to be rendered

---

# Rails Generators

The scaffold generators will generate code for you

For our application, let's generate a "coming soon" page where we collect email addresses

    .terminal
    $ rails generate scaffold subscription email
    invoke  active_record
    create    db/migrate/20130923234940_create_subscriptions.rb
    create    app/models/subscription.rb
    invoke    test_unit
    create      test/models/subscription_test.rb
    create      test/fixtures/subscriptions.yml
    invoke  resource_route
     route    resources :subscriptions
    invoke  scaffold_controller
    create    app/controllers/subscriptions_controller.rb
    invoke    erb
    create      app/views/subscriptions
    create      app/views/subscriptions/index.html.erb
    create      app/views/subscriptions/edit.html.erb
    create      app/views/subscriptions/show.html.erb
    create      app/views/subscriptions/new.html.erb
    create      app/views/subscriptions/_form.html.erb
    ...

---

# Database Setup

## Config database

Replace the contents of `config/database.yml` with this:

```yml
development:
  adapter: postgresql
  database: betastore_development

test:
  adapter: postgresql
  database: betastore_test
```

Because you are using Postgres.app, you can connect without a username or password

## Run migrations

    .terminal
    $ rake db:create
    $ rake db:migrate
    ==  CreateSubscriptions: migrating ============================================
    -- create_table(:subscriptions)
       -> 0.0044s
    ==  CreateSubscriptions: migrated (0.0045s) ===================================

`rake` is command for running tasks, run `rake -T` to see the list

You can create your own, we will cover that later

---

# Running the server

    .terminal
    $ rails server
    => Booting WEBrick
    => Rails 4.0.0 application starting in development on http://0.0.0.0:3000
    => Run `rails server -h` for more startup options
    => Ctrl-C to shutdown server
    [2013-09-23 19:56:40] INFO  WEBrick 1.3.1
    [2013-09-23 19:56:40] INFO  ruby 2.0.0 (2013-06-27) [x86_64-darwin12.4.0]
    [2013-09-23 19:56:40] INFO  WEBrick::HTTPServer#start: pid=387 port=3000

Your server will continue running in this bash shell. You can press ctrl+c to stop it, but leave it running.

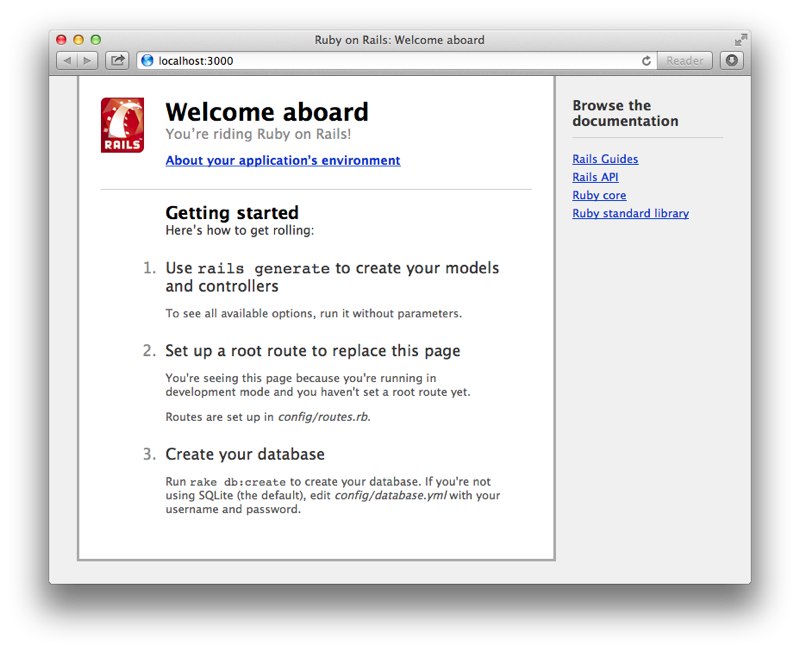

Go to http://localhost:3000 to see the app

---

.center[![Welcome](img/welcome.png)]

---

# Our App

We are just getting started with our Betastore app, so for now we want to show a form on the home page that will allow future customers to give us their email address so we can send them an email when our store goes live. We will store the email addresses we collect in our database.

---

# Root Route

`config/routes.rb`

```ruby
Betastore::Application.routes.draw do
  resources :subscriptions
  root :to => 'subscriptions#new'
end
```

Remove comments and add root route to our sign up page

---

# View The Routes

    .terminal
    $ rake routes
               Prefix Verb   URI Pattern                       Controller#Action
        subscriptions GET    /subscriptions(.:format)          subscriptions#index
                      POST   /subscriptions(.:format)          subscriptions#create
     new_subscription GET    /subscriptions/new(.:format)      subscriptions#new
    edit_subscription GET    /subscriptions/:id/edit(.:format) subscriptions#edit
         subscription GET    /subscriptions/:id(.:format)      subscriptions#show
                      PATCH  /subscriptions/:id(.:format)      subscriptions#update
                      PUT    /subscriptions/:id(.:format)      subscriptions#update
                      DELETE /subscriptions/:id(.:format)      subscriptions#destroy
                 root GET    /                                 subscriptions#new

Routes are executed in order until a match is found

`:` in a URI pattern represents a variable, so `/subscriptions/:id` matches `/subscriptions/1`

The format of `subscriptions#index` means the `index` method of the `SubscriptionsController`

---

# Subscriptions New

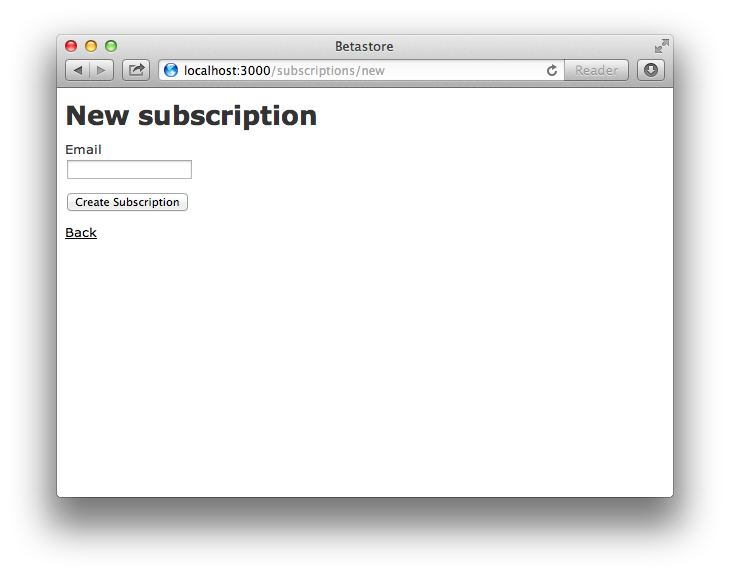

The subscription sign up form that was generated for us looks like this:

.center[![Scaffold New](img/scaffold_new.png)]

---

# What We Want

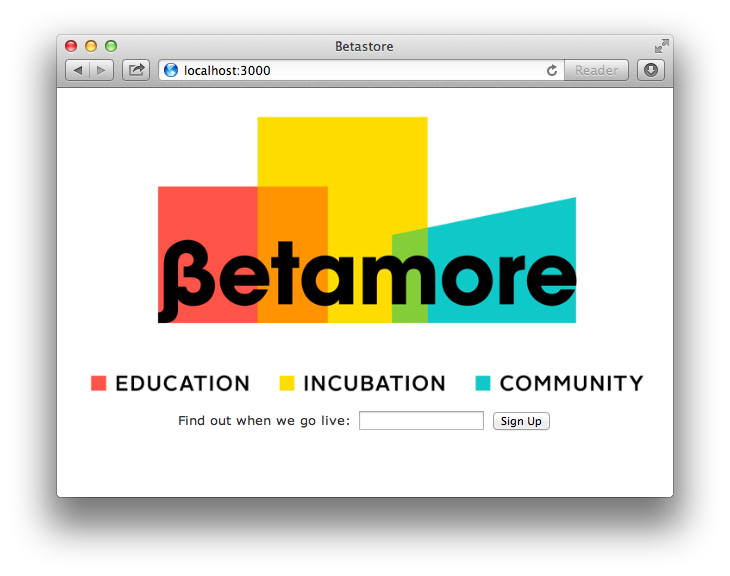

Lets change it to look like this:

.center[![Betamore Sign Up](img/betamore_sign_up.png)]

---

# Subscriptions Controller

Here is a simplified version of what you see in `app/controllers/subscriptions_controller.rb`:

```ruby
class SubscriptionsController < ApplicationController
  def new
    @subscription = Subscription.new
  end

  def create
    @subscription = Subscription.new(subscription_params)

    if @subscription.save
      redirect_to new_subscription_path,
        notice: 'Subscription was successfully created.'
    else
      render action: 'new'
    end
  end

  private
  def subscription_params
    params.require(:subscription).permit!
  end
end
```

The new action sets up a variable for the form.

The create action handles actually creating a record in the database based on the form data passed in.

We will cover how this works in more detail in future lessons.

---

# Redirects

A redirect is an HTTP response with no body abut a `Location` header that instructs the browser to load a different URL

    .terminal
    $ curl -I http://google.com
    HTTP/1.1 301 Moved Permanently
    Location: http://www.google.com/
    Content-Type: text/html; charset=UTF-8
    Date: Thu, 26 Sep 2013 20:59:44 GMT
    Expires: Sat, 26 Oct 2013 20:59:44 GMT
    Cache-Control: public, max-age=2592000
    Server: gws
    Content-Length: 219
    X-XSS-Protection: 1; mode=block
    X-Frame-Options: SAMEORIGIN
    Alternate-Protocol: 80:quic

---

# Views

Views in Rails are templates written in Embedded Ruby (ERB), which is similar to PHP

    .terminal
    Hello, <%= @name %>

if name is set to `"Paul"`, that becomes

    .terminal
    Hello, Paul

`<% %>` are used for expressions that don't return a value

    .terminal
    <% if @name %>
      Hello, <%= @name %>
    <% else %>
      Welcome, Guest
    <% end %>

The code between the `<% %>` and `<%= %>` is Ruby

---

# New view

Replace the contents of this file

`app/views/subscriptions/new.html.erb`

    .terminal
    <%= render 'form' %>

---

# Form Partial

Replace the contents of this file

`app/views/subscriptions/_form.html.erb`

    .terminal
    <%= form_for(@subscription) do |f| %>
      <div class="field">
        <%= f.label :email, "Find out when we go live:" %>
        <%= f.text_field :email %>
        <%= f.submit "Sign Up" %>
      </div>
    <% end %>

    <% if flash.present? %>
      <% flash.each do |k,v| %>
        <div class="<%= k %>"><%= v %></div>
      <% end %>
    <% end %>

---

# Layout

Replace the contents of this file

`app/views/layouts/application.html.erb`

    .terminal
    <!DOCTYPE html>
    <html>
    <head>
      <title>Betastore</title>
      <%= stylesheet_link_tag "application" %>
      <%= javascript_include_tag "application" %>
      <%= csrf_meta_tags %>
    </head>
    <body>
      <div style="margin: 0 auto; text-align: center">
        <%= image_tag "logo.jpg", width: 600 %>
        <%= yield %>
      </div>
    </body>
    </html>

---

# Get the logo

    .terminal
    $ mkdir public/images
    $ cd public/images
    $ curl -o logo.jpg http://whatweekly.com/wp-content/uploads/2012/08/betamorelogo.jpg

---

# Sign Up Form

Go to http://localhost:3000 to see the sign up page

.center[![Betamore Sign Up](img/betamore_sign_up.png)]

---

# Success

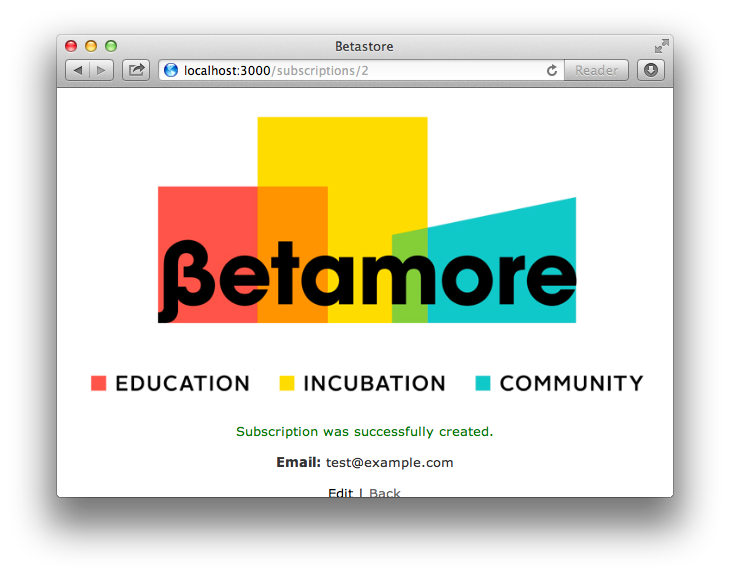

Go ahead and submit an email address and you should see the success page:

.center[![Betamore Sign Up Success](img/betamore_sign_up_success.png)]

---

# Rails Console

Wouldn't it be nice if we could look into our database to see what records we have? You can boot up an IRB session with the Rails environment loaded up using the command `rails console`:

    .terminal
    $ rails console
    Loading development environment (Rails 4.0.2)

You can then get the last subscription created like this:

    .terminal
    >> Subscription.last
    => #<Subscription id: 1, email: "test@example.com", ...>

---

# psql

We can also use Postgres' command line tool to query our database:

    .terminal
    $ psql -d betastore_development
    psql (9.3.1)
    Type "help" for help.

    betastore_development=# select email from subscriptions;
           email
    --------------------
     mail@paulbarry.com
    (1 row)

`psql` is like IRB for your database. The prompt ends in a `#` character. You type in a SQL query and press enter and it shows you the result. You can press `ctrl+d` to exit.

This is just a simple query to get all the email addresses in the database. We will learn SQL in-depth in a future class.

---

# Navicat

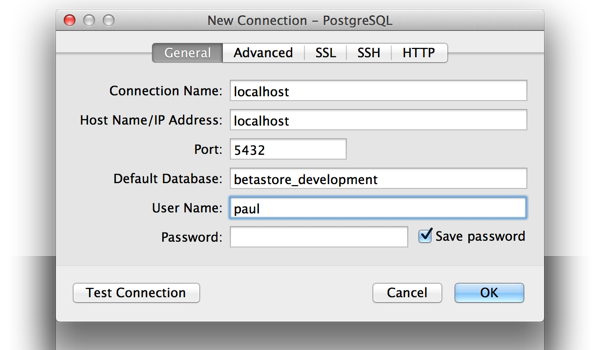

There is an app called **Navicat Essentials for PostgreSQL** available in the Mac App Store for $6.99, I recommend purchasing that. It is a graphical tool for working with your database. Once you have it installed and running, click on connection and you will see something like this:

.center[![Navicat Connection](img/navicat_connection.png)]

Enter `localhost` for **Connection Name**, `betastore_development` for **Default Database**, your Mac username for **User Name**, leave the **Password:** field blank and then check the box **Save password**. Press the button "Test Connection" and you should see something similar to the following slide.

---

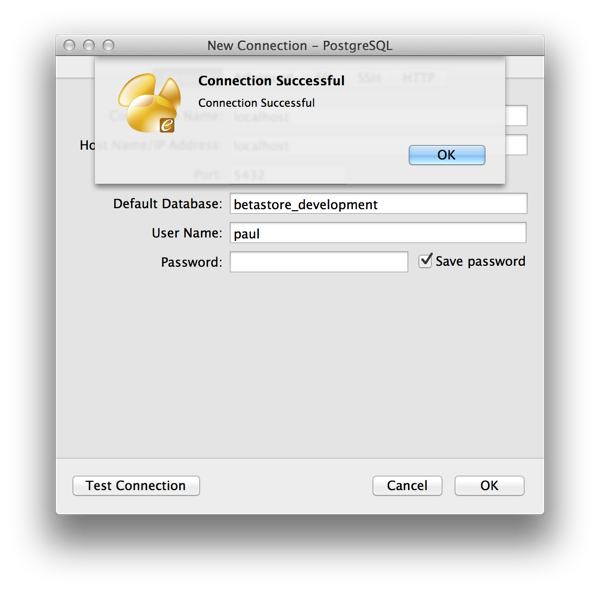

# Navicat Connection

.center[![Navicat Test Connection](img/navicat_test_connection.png)]

---

# Navicat

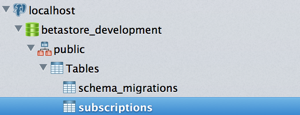

Once connected, you navigate to your database in the left-side menu:

![Navicat Database](img/navicat_database.png)

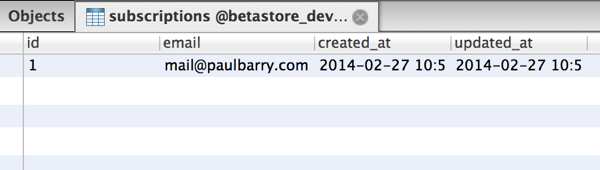

Then you can double-click on the subscriptions table and see the rows that are in the table:

![Navicat Table](img/navicat_table.png)

---

# Review

We're just getting started with our Rails app. At this point we want to make sure we understand the high-level components of a Rails app and how they relate to one another:

![MVC](img/request_diagram.png)

1.  Browser makes an HTTP request

2.  Router determines which controller action should handle the request

3.  Controller action uses models to store/retrieve data

4.  Models make SQL queries to store/retrieve data from the database

5.  Controller passes data to the view ERB templates to generate an HTML page

6.  Controller returns the HTML page to the browser to be rendered

We will be exploring each of these components in-depth in our upcoming classes.
